Williams & Hussey Feed Roll Kits: Restore Feed Function and Customize Performance for Any Molder

Bring your molder’s feed system back to peak condition with a Williams & Hussey Feed Roll Kit—designed to fit every model we’ve ever built, from vintage W7s to current variable speed machines. Whether you’re upgrading worn rolls or adjusting for specific production needs, our polyurethane feed rolls deliver consistent performance and reliability.

Durometer Options: Choose the Grip and Durability You Need

Our feed rolls are available in two polyurethane hardness levels to match your material and job type:

• Yellow (60 durometer): Softer material grips better—ideal for short runs, single passes, and softer profiles.
• Green (70 durometer): Slightly harder and longer-lasting—perfect for multi-pass jobs and continuous use.

Feed Roll Kit Options

Each kit includes two feed rolls and four axles, with configurations tailored for grip, durability, or a combination of both:

• P-123-K – Two yellow rolls & four axles. Best for soft edges and light-duty runs.

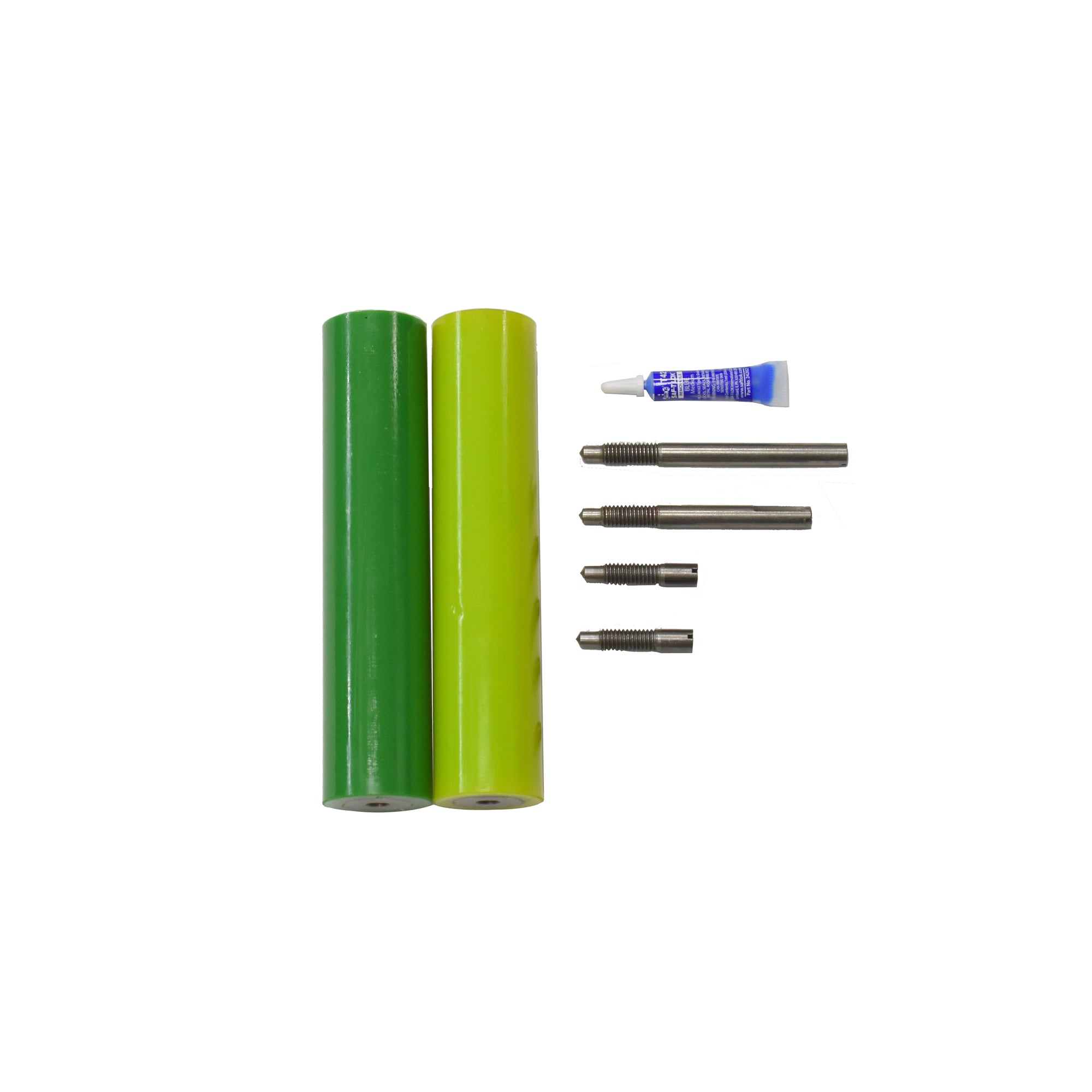

• P-160-K – One yellow and one green roll & four axles. Use yellow on the infeed (for a better grip) and green on the outfeed (for added durability).

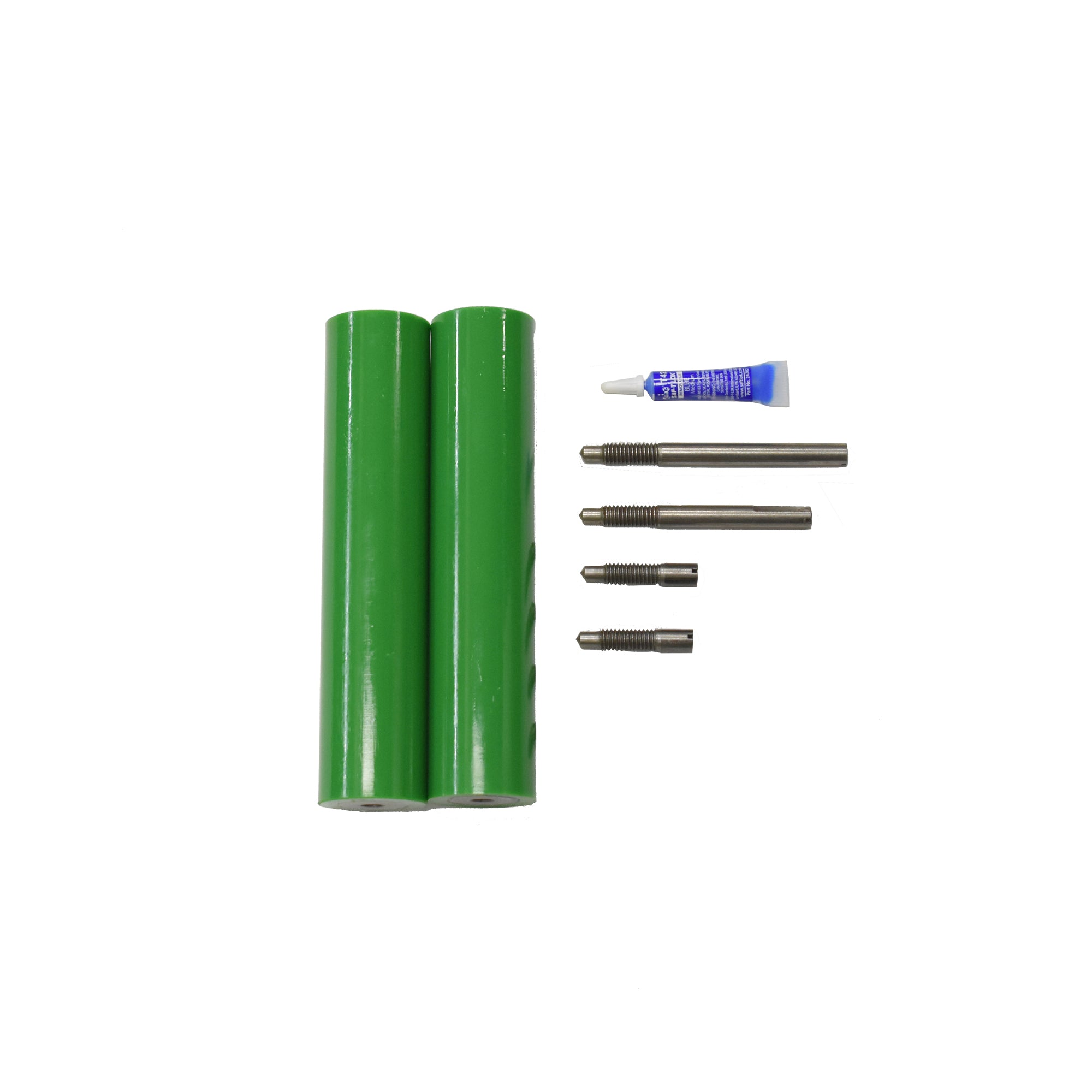

• P-170-K – Two green rolls & four axles. Designed for multi-pass or high-volume use where feed rolls wear in consistent locations.

What’s Included in Each Kit

All parts are built to factory specs for a perfect fit and easy installation:

• 2 Polyurethane Feed Rolls
• 2 P-122 Axles (1⅝”, Post Side)
• 1 P-124 Infeed Axle (3¼”)
• 1 P-224 Outfeed Axle (3¾”)
• 2 Rest Screws & Thread Locker

Fits All Williams & Hussey Molder Models

From legacy models like the W7 and 154 to the current 206, 209, and 154CE models—this kit is fully compatible.

Having Trouble with Feed Rolls Not Turning?

If your feed rolls aren’t turning, the issue could be chain misalignment, worn sprockets or axles, or incorrect pressure screw adjustment. Before replacing parts, check out our step by step:

Feed Rolls Not Moving?

Installation Help and Resources

Installing your new feed roll kit is straightforward.

Feed Roll Replacement Instructions:
Download our detailed step-by-step guide to walk you through removing the old rolls and installing the new components.
Click HERE to download the instructions (PDF)

Watch the Installation Video:
See the process in action. This short video covers everything from removing the swing arm to axle alignment and proper sprocket placement.

These kits make feed roll replacement quick and reliable—helping you keep your molder running at peak efficiency.
