FEATURES

MODEL 154CE

MODEL 206

MODEL 209

FEED TYPE 11 (fpm) constant feed 0-19 (fpm) variable feed 0-19 (fpm) variable feed

KNIFE MOTOR

2 HP (3450 rpm) 2 HP (3450 rpm) 1 1/2 HP (3480 rpm)
PHASE
VOLTS
FLA (Full Load Amps)
Single
Volts:  220-240
FLA:   10
Single
Volts:  220-240
FLA:   10
Single
Volts:  115
FLA:    20
PHASE
VOLTS
FLA (Full Load Amps)
Not Available
Three
Volts:  208-240
FLA:    5.15
Not Available
MACHINE BASE Steel Construction
 with levelers
Steel Construction
 with levelers
Steel Construction
 with levelers
    Length/Width/Height 28/22/33 28/22/33 28/22/33
    Working Height 35 35 35
    Mobility Mobile base Mobile base Mobile base
GUIDE SYSTEM GS-2 GS-2 GS-2
PACKAGE WEIGHT 218 lbs 218 lbs 218 lbs
AVAILABILITY In-Stock In-Stock In-Stock

CONVERSION KITS (W7,W7PF W&H MOLDERS)

  • $45000

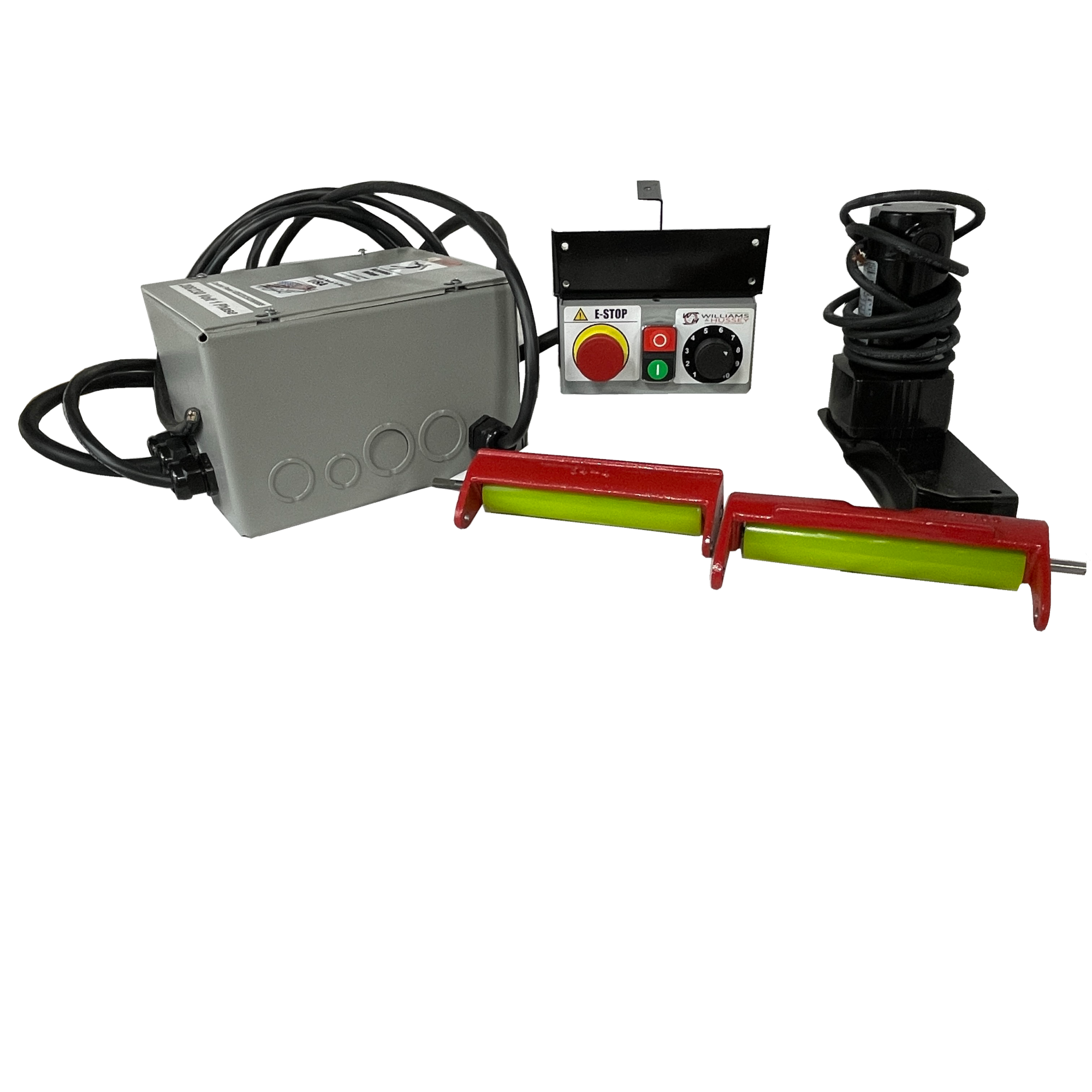

Our conversion kits are designed to upgrade old W7 and W7PF W&H molders to have our current features.  Our kits include parts needed to upgrade molders to have power in and power out feed, multi-pass capabilities and either be a constant feed of 11 feet per minute or a variable feed of 0-19 feet per minute.

54-315-GREEN-K; Upgrade to power in-feed and out-feed with green rollers, 11 feet per minute and multi-pass. (These features are in our Model 154CE)

54-315-YELLOW-K; Upgrade to power in-feed and out-feed with yellow rollers, 11 feet per minute and multi-pass. (These features are in our Model 154CE)

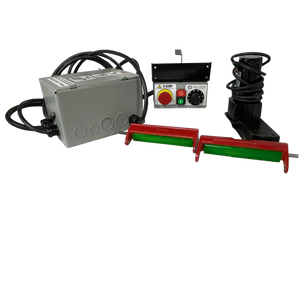

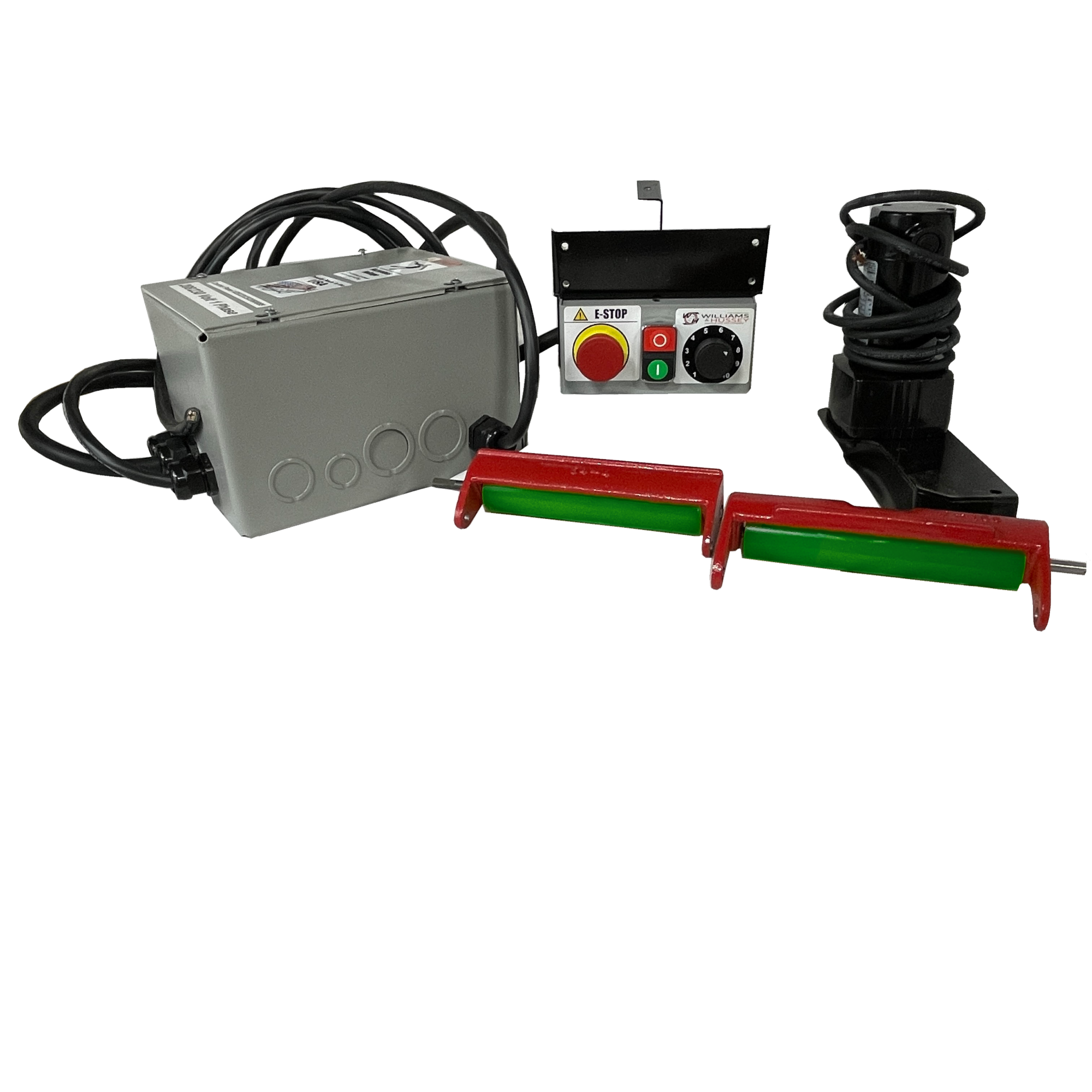

54-316-GREEN-K; Upgrade to power in-feed and out-feed with green rollers, variable feed and multi-pass. (These features are in our Model 206/209)

54-316-YELLOW-K; Upgrade to power in-feed and out-feed with yellow rollers, variable feed and multi-pass. (These features are in our Model 206/209)
